CreatBot F430

What makes F430 to be the most welcomed 3d printer product? CreatBot F430 is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on. Big Build Volume 400*300*300mm High Resolution 0.04mm Reliable Enough to run 24/7 Compatible Filament Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc. Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc. High Performance: Metal Fill, PEEK, etc. Heat Control System Hotend 260°C+420°C Hot Bed 120°C Hot Chamber 70°C

FEATURES 400*300*300mm Nozzle temp.420°C Reliable 24/7 Hot bed & hot chamber Fully enclosed integrated body The Best of Best

Support 420°C Hotend We are the first one to publish 420°C high temperature nozzle to 3d printer market since year of 2016, now it is the 4th new tech version. F430 equipped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc. The dual hotend is replaceable, which provide more possibility on your application.

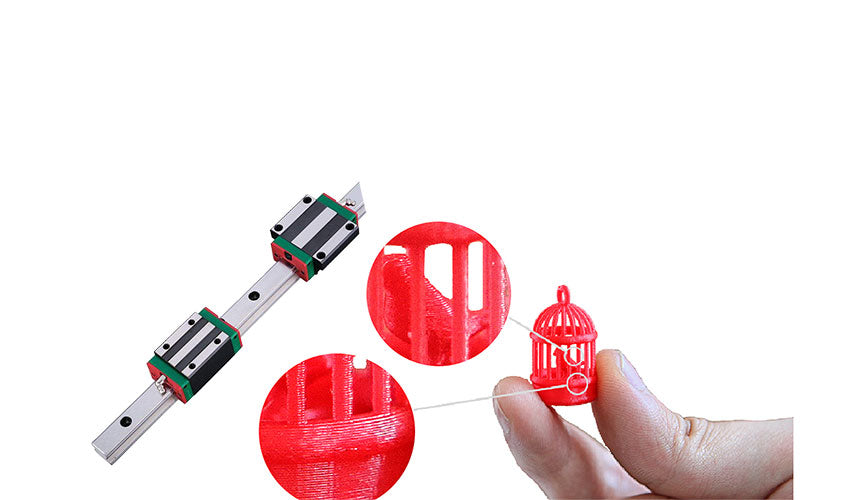

High Precision & High Speed We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04 mm, and it allows to extrude filament steady without block.

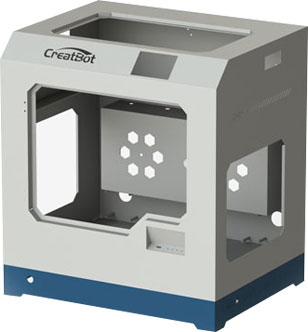

Stability The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

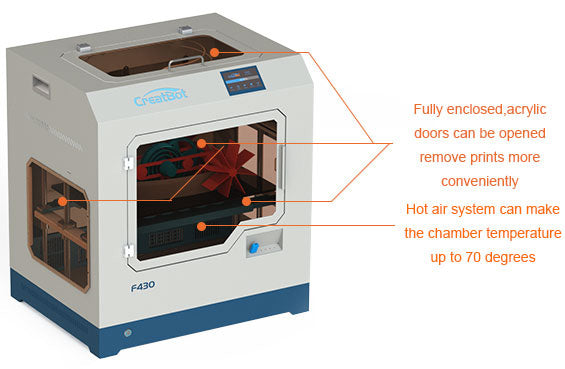

Fully Enclosed +Hot Chamber 70°C -Fully enclosed chamber can block all external interference and reduce noise. -Hot chamber device provide constant room temperature 70°C,which is able to prevent prints from warping and deform.

Outage Restored & Filament Detection The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on. The printer will avoid invalid printing by stopping print and warning when filament runs out.

Touch Screen -The printer have all-English-menu touch screen which is easy - -Operate and friendly use. One key to warm, one key to print as well as many other shortcut keys.

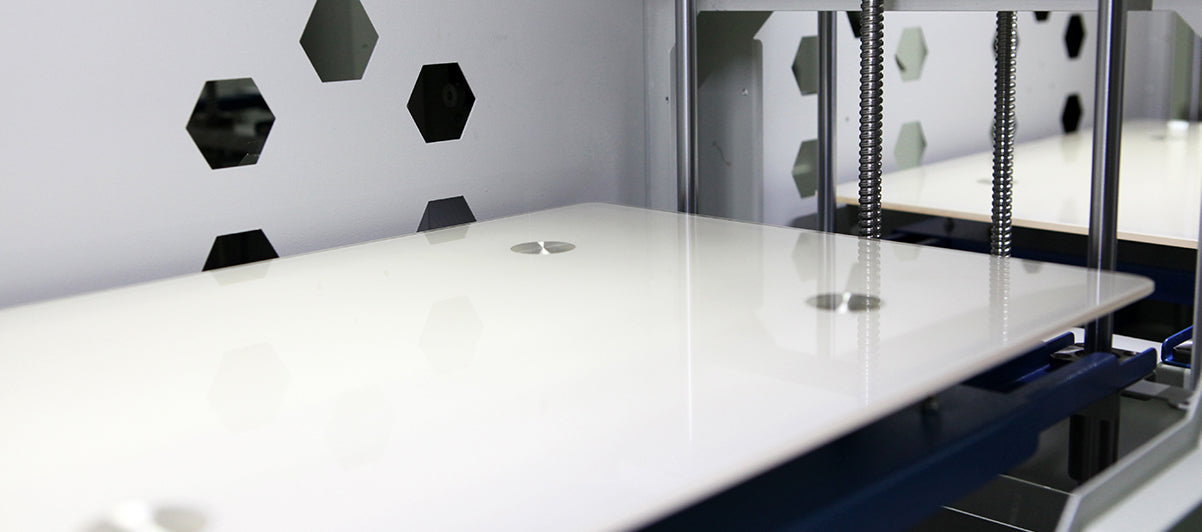

Platform Glass-Ceramic Platform The printer equipped a heatable glass-ceramic platform. Glass-ceramic has high thermal efficiency and best low-expansion coefficient, so it doesn't deform when heating & cooling. Most materials can be extruded and stick to bed very well.

Platform Glass-Ceramic Platform The printer equipped a heatable glass-ceramic platform. Glass-ceramic has high thermal efficiency and best low-expansion coefficient, so it doesn't deform when heating & cooling. Most materials can be extruded and stick to bed very well.

Air Filter System The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.

Automatic Leveling Platform BL touch smart version use of 25 points, use of 25 points through the probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

Technical Specs
