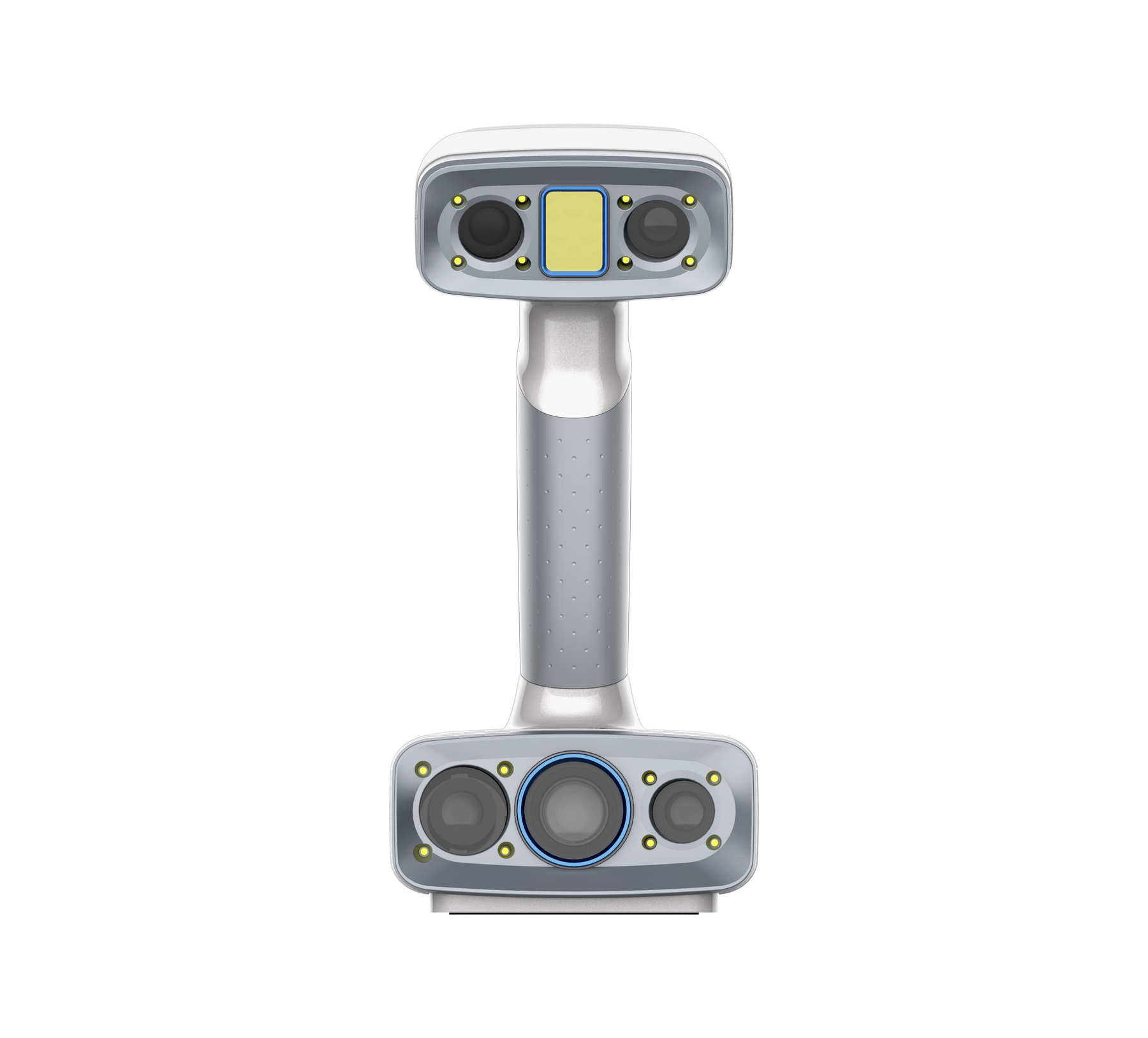

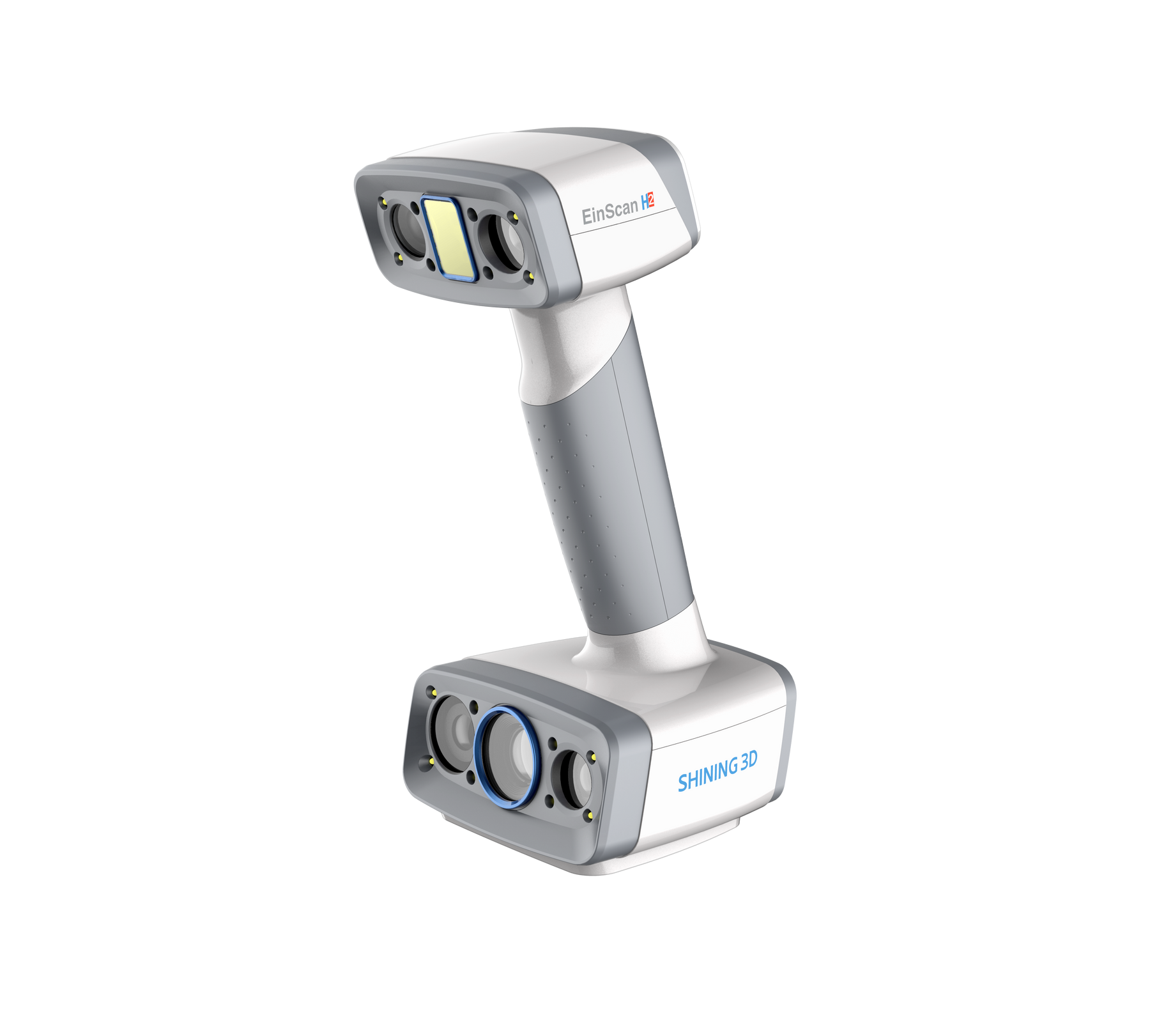

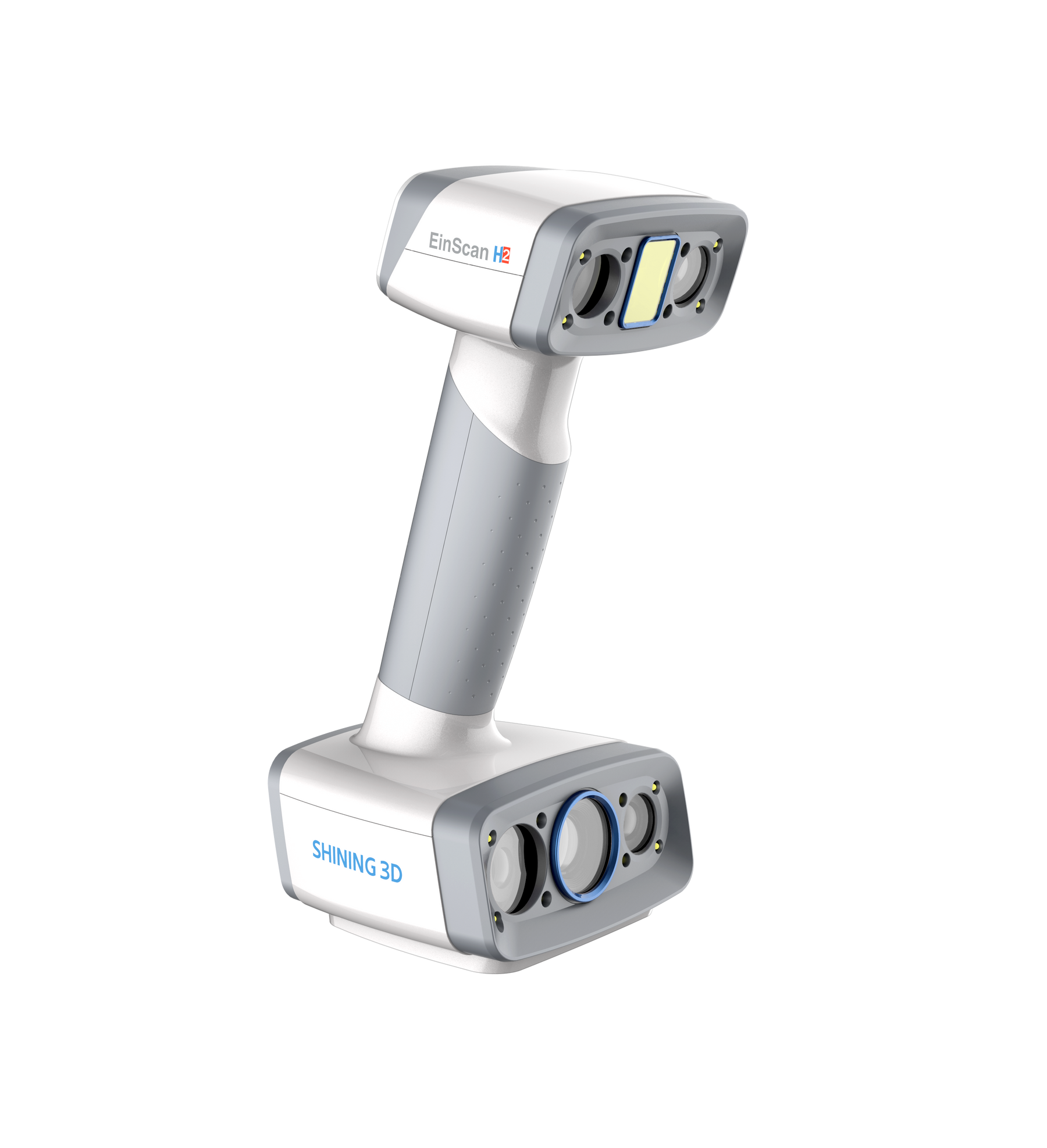

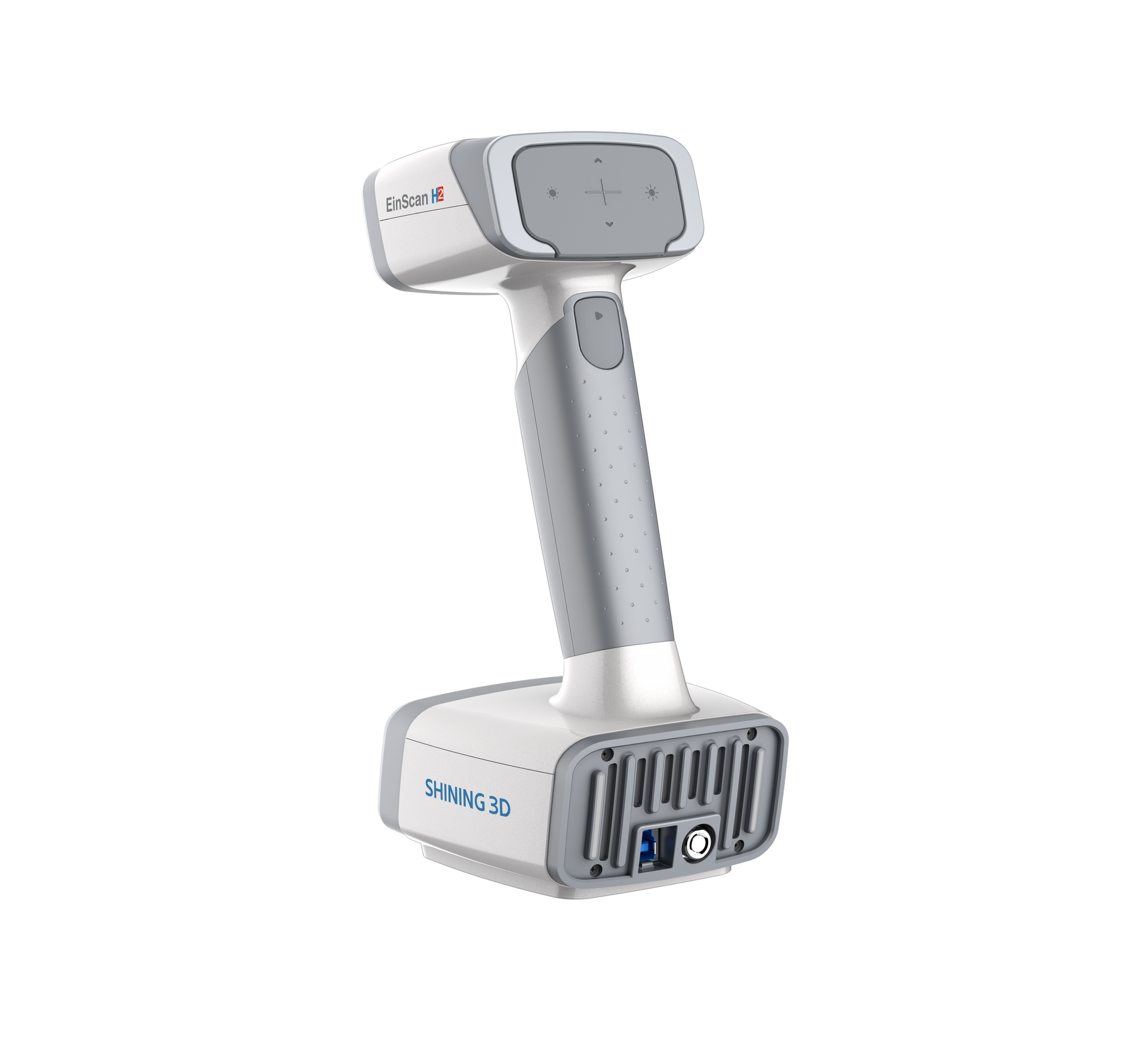

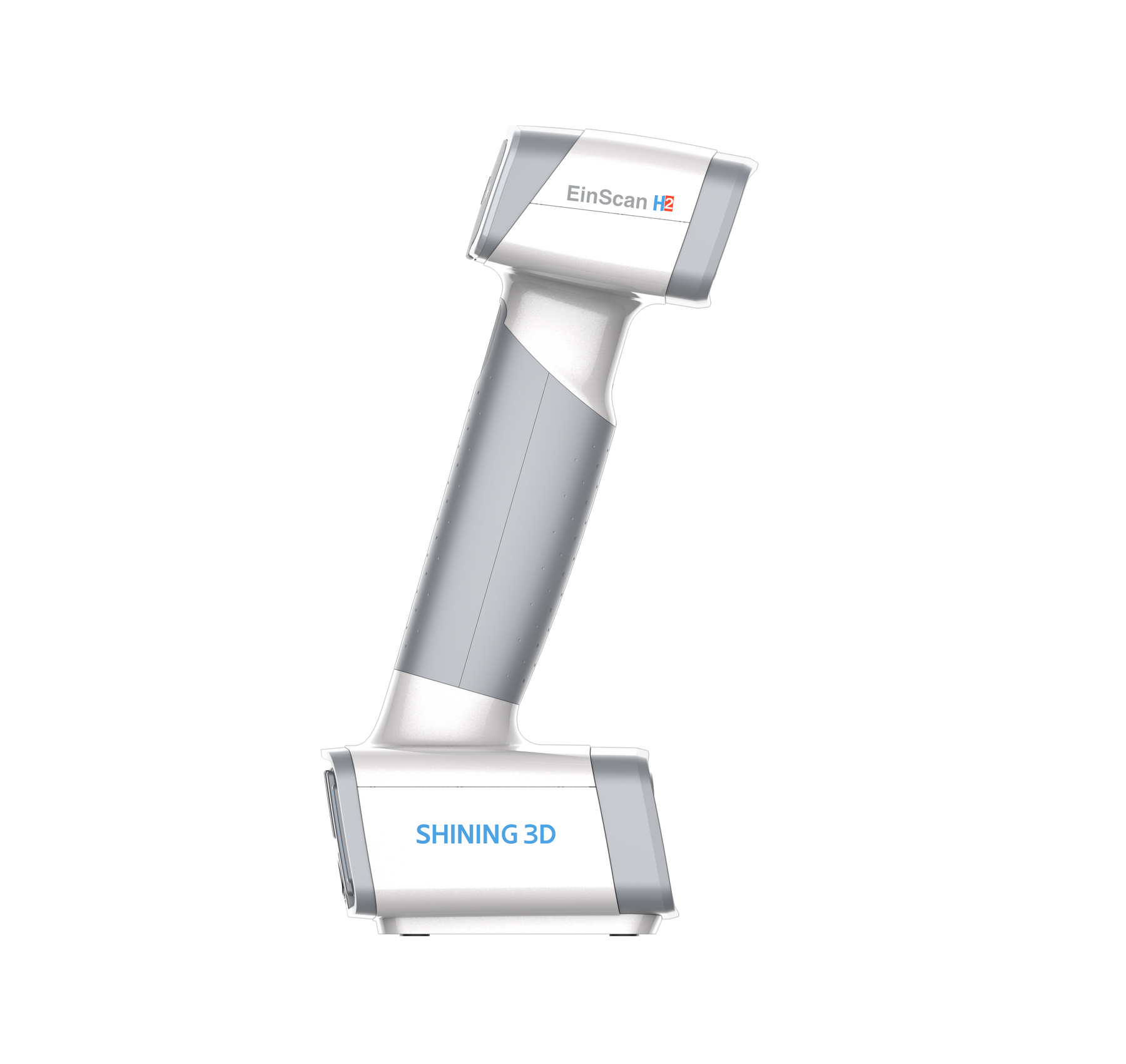

Einscan H2 Hybrid LED & Infrared Color Handheld 3D Scanner
The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces. The EinScan H2 is an efficient 3D scanning tool that can revolutionize your workflow.
Major Updates
5MP texture camera
3 VCSEL projectors
Accuracy up to 0.05mm
Ultra-wide FOV and adjustable working distance
Features

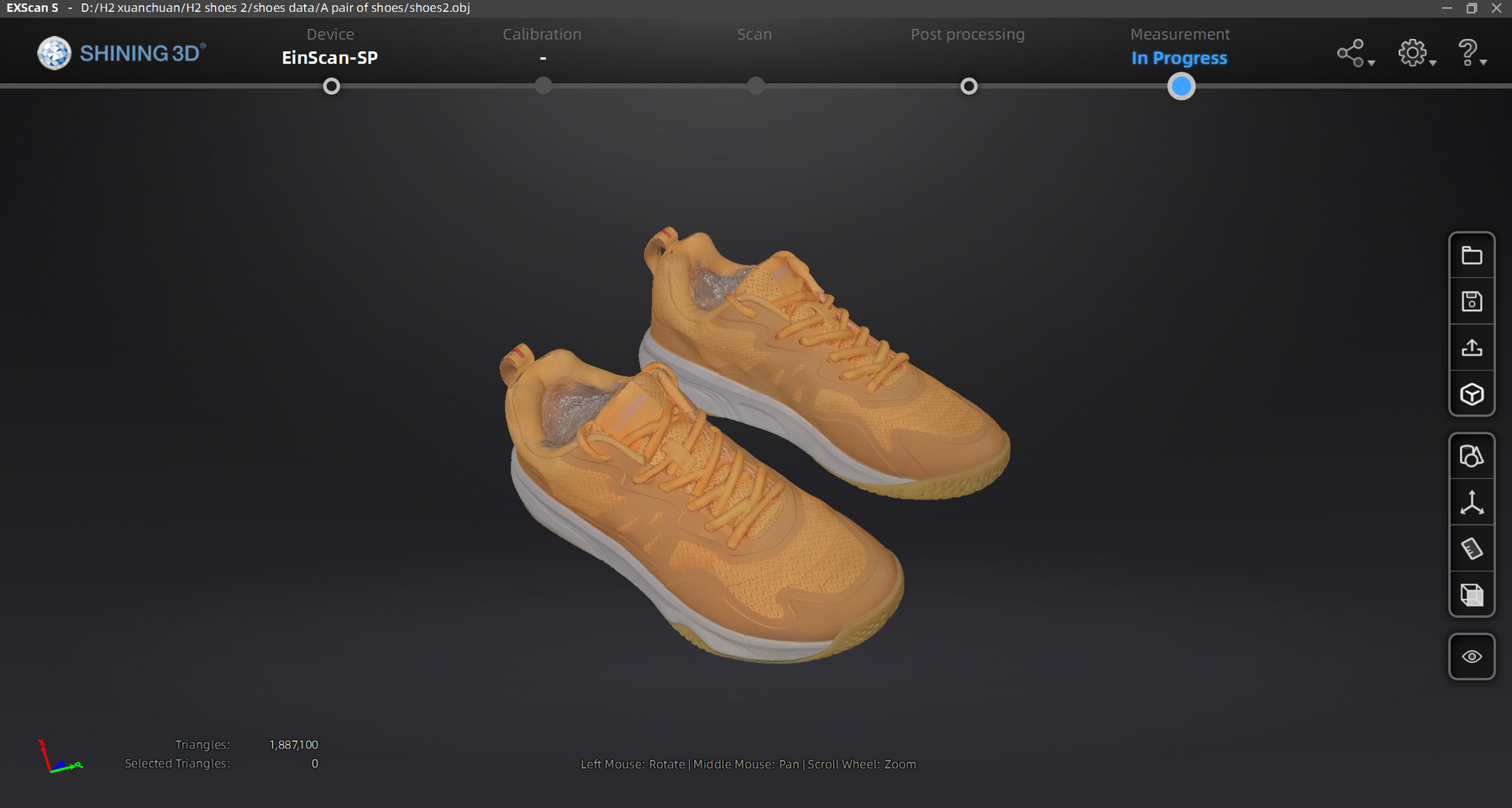

Photorealistic Texture
Superior Environmental Adaptability
Provide superior material and lighting adaptability, effortlessly handling various surface types and scanning environments.
Hybrid Light Source
Dual Light source improves scanning efficiency.
*LED light offers fast 3D scanning with accurate, high-quality data.
*Infrared VCSEL is ideal for capturing dark surfaces, for human body scanning, and for bright-lit environments.
Ultra-wide FOV and Adjustable Working Distance
Adjustable working distance: Enables working distance adjustment from 200mm to 1500mm, to adapt to narrow or wide scenes and objects of various sizes.
FOV (Field of View) up to 780mm x 900mm: Offers flexibility in scanning volume to capture large-sized objects quickly.
Marker-free scanning: Scans rich geometric features without the hassle of markers.
Optimized for Face and Body 3D Scanning
Flashless infrared technology: Ensures optimal comfort during face and body 3D scanning.
Advanced hair enhancement algorithm: Designed to successfully capture light and dark hair.
Non-rigid algorithm in IR Mode: Captures 3D body data quickly and seamlessly, with auto-compensation of slight movements to eliminate misalignment risks.
| Scan Mode | White Light Mode | IR Mode | |
|---|---|---|---|
| Light Source | White Light, visible | Infrared light, invisible | |
| Safety | LED light（eye-safe） | CLASS І (eye-safe) | |
| Scan Accuracy | Up to 0.05mm | Up to 0.1mm | |
| Volumetric Accuracy* | 0.05±0.1mm/m | 0.1mm±0.3mm/m | |
| Scan & Align Speed | 1,200,000points/s, 20FPS | 1,060,000points/s, 20FPS | |
| Camera Frame Rate | 55FPS | ||
| Align Modes | Markers Alignment、Feature Alignment、Hybrid Alignment、Texture Alignment | Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers | |
| Best Working Distance | 470mm | ||
| Depth of Field | 200-700mm | 200-1500mm | |
| Maximum FOV | 420mm*440mm | 780mm*900mm | |
| Point distance | 0.2mm-3mm | 0.2mm-3mm | |
| Texture Scan | Yes(Built-in Color camera) | ||
| Color Scanning | Support | ||
| Connection Standard | USB3.0 | ||
| Output Formats | OBJ;STL;ASC;PLY;P3;3MF | ||
| Dimensions | 108mm*110mm*237mm | ||
| Weight | 731.1g | ||
| Operating Temperature Range | 0-40℃ | ||
| Operating Humidity Range | 10-90% | ||
| Certifications | CE，FCC，ROHS，WEEE，KC | ||
| Required Configuration | OS: Win10, 64-bit; Graphics card: NVIDIA GTX1060; Video memory: ≥4GB; Processor: Intel I7-8700; Memory: ≥16GB | ||
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
