Einscan SE v2 Desktop 3D Scanner

$1,099.00
Quantity:

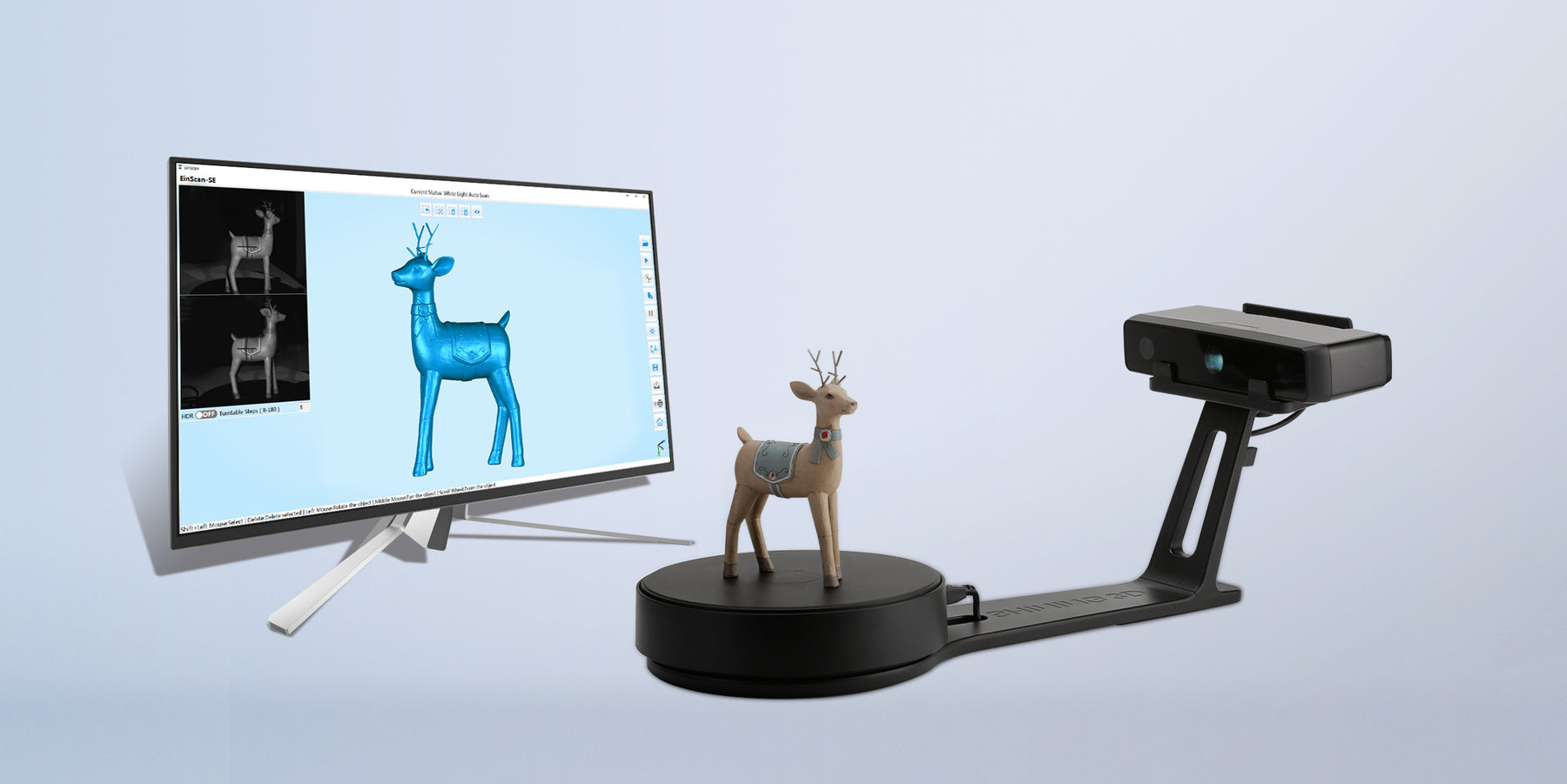

The Einscan SE 3D desktop scanner is a great choice for educators, beginners and non-technical users.  Einscan-SE 3D scanner provides an easy 3D scanning experience, excellent scanning quality and a small footprint.



Easier Operation, Faster Scanning, User Friendly and Enhanced Efficiency

  • Time needed for a single scan 8 mins.; Time needed for a 360-degree scan under auto-scan mode 2 mins.



Fine Details, Every Scan Generates a High-Quality 3D Data File

  • Structured light 3d scanning technology, great power of reconstruction the real geometry of the object with fine detail.

Compatible for Communicating with 3D Printer

  • Auto meshing to watertight 3D data, providing high quality 3D data which can be printed directly to a 3D printer. Provide API access service for any brand 3D printers.

One Click Upload for Online File Saving and Data Sharing

  • Support third-party data sharing platform for access service.
  • Automatic calibration with no rigid set-up required; One-click scanning; Auto alignment and fusion for direct mesh generation.

Safety in Use

  • Visible white light, no laser, eyes secure for children.

Specifications



Scan Mode

Fixed Scan

Auto Scan

Mode of Alignment

Feature; Manual

Turntable; Manual

Single Shot Accuracy

≤0.1 mm

Minimum Scan Volume

30 × 30 × 30 mm

Maximum Scan Volume

700×700×700 mm

200×200×200 mm

Range of Single Capture

200×150 mm

Scan Speed

<8 s

Point Distance

0.17 mm ~ 0.2 mm

Texture

Yes

File Format

OBJ, STL, ASC, PLY

Camera Resolution

1.3 Mega Pixels

Light Source

White Light

Stand-off Distance

290 ~ 480 mm

Computer Requirements (Required)

USB:1 ×USB 2.0 or 3.0; OS: Win10 (64 bit); CPU: Dual-core i5 ; RAM: 8G

Computer Requirements (Recommended)

Graphics card: Nvidia series; Graphics memory > 1G

Weight (packed)

4.9 kg

Dimension

570×210×210 mm

Power Supply

40 w

Input Voltage

DC：12 v, 3.33 A

Calibration Board

Standard

Turntable

Standard

Load Capacity of Turntable

5 kg



PACKAGE INCLUDES: 1* Scanner, 1* Turntable, 1* Scanner stand, 1* Scanner Bracket, 1* Calibration Board Holder, 1* Power Cord, 1* Power Adapter, 1* USB Cable A, 1* USB Cable B, 1* Quick Guide.

One Year Manufacture Warranty
